PRODUCT PROFILE

500 Amp 600 Volt 3 Pole Basic Inter CB

Price: Call for price
Manufacturer: Square D
Model: MAF36500

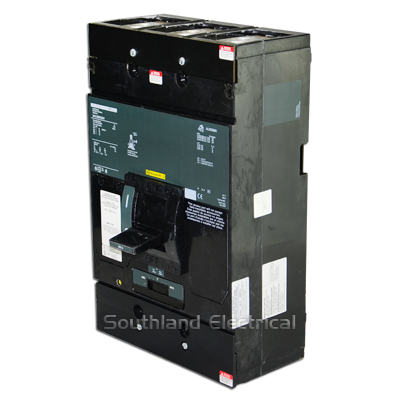

Square D MAF36500 Industrial Electric Thermal Magnetic Molded Case Circuit Breaker
  • 500 Amp
  • 600 Volt
  • 3 Pole
  • Basic Interrupt
  • No Lugs

MA-Frame(300-1000 Amp)

Item Code:
MAF36500


M
Frame Type

A
Interrupt

F
Termination

3
Number of Poles

6
Volts

500
Amps

-
Suffix



Options:








Frame
Interrupt
Termination
Poles
Voltage
Amperage
Suffix

M
A=Standard
None=I-Line
1
2=240Vac
300
F=Frame Only


C=Extra High
F=No Lugs
2
4=480Vac
350
G=Ground Fault


H=High
L=Lugs Both Ends
3
6=600Vac
400
DC=500Vdc


I=Current Limiting
P=Lugs Off End

6=500Vdc
450
M=Molded Case Switch


Y=Standard(F Frame)



500
MT=Top Feed Lugs






600
V=View Window






700
##DC=Adj Amp DC Trip






800
(-)##M=MAG-GARD Adj Inst Trip






900
##M=MAG-GARD Mag Only Trip






1000


Interrupting Capacity Rating





Poles
240 VAC
480 VAC
600 VAC
MA Frame Type
2,3
42kAIC
30kAIC
22kAIC
MH Frame Type
2,3
65kAIC
65kAIC
25kAIC
